The High-Speed

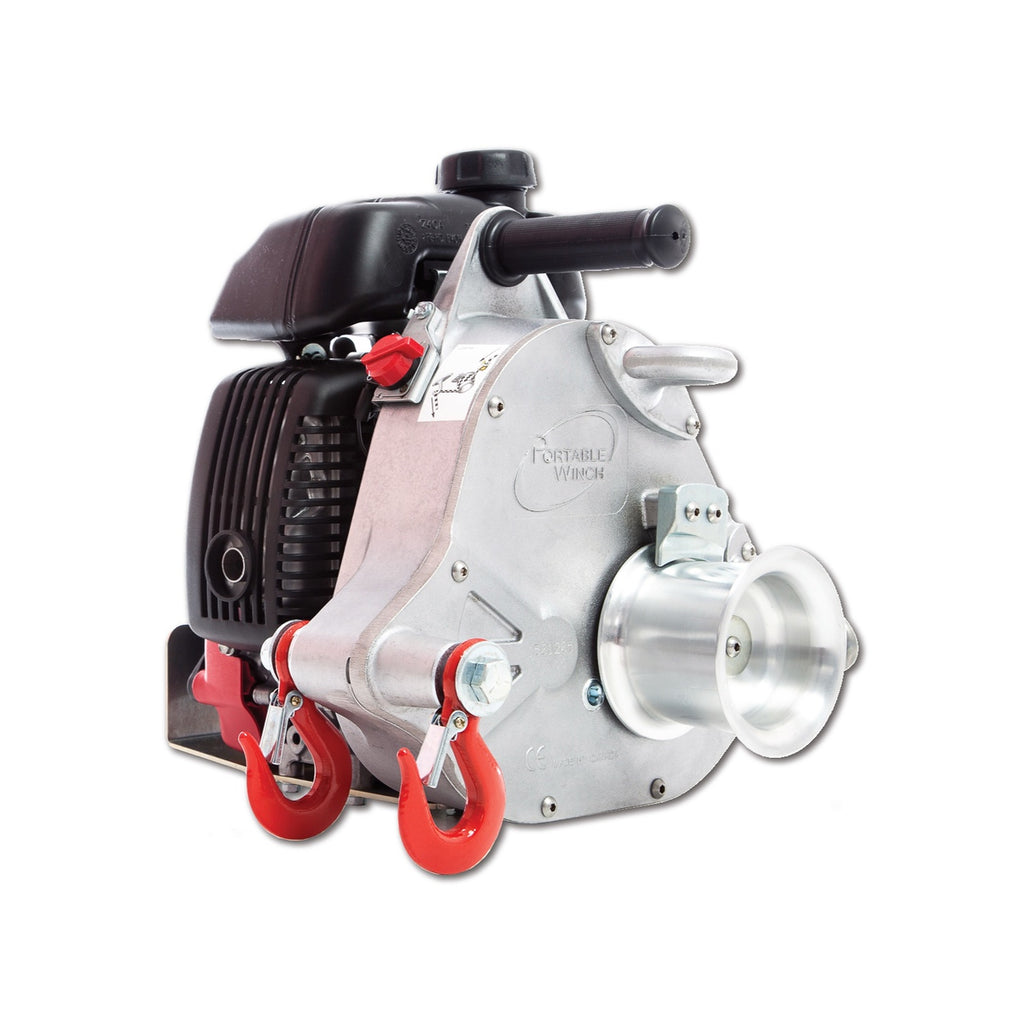

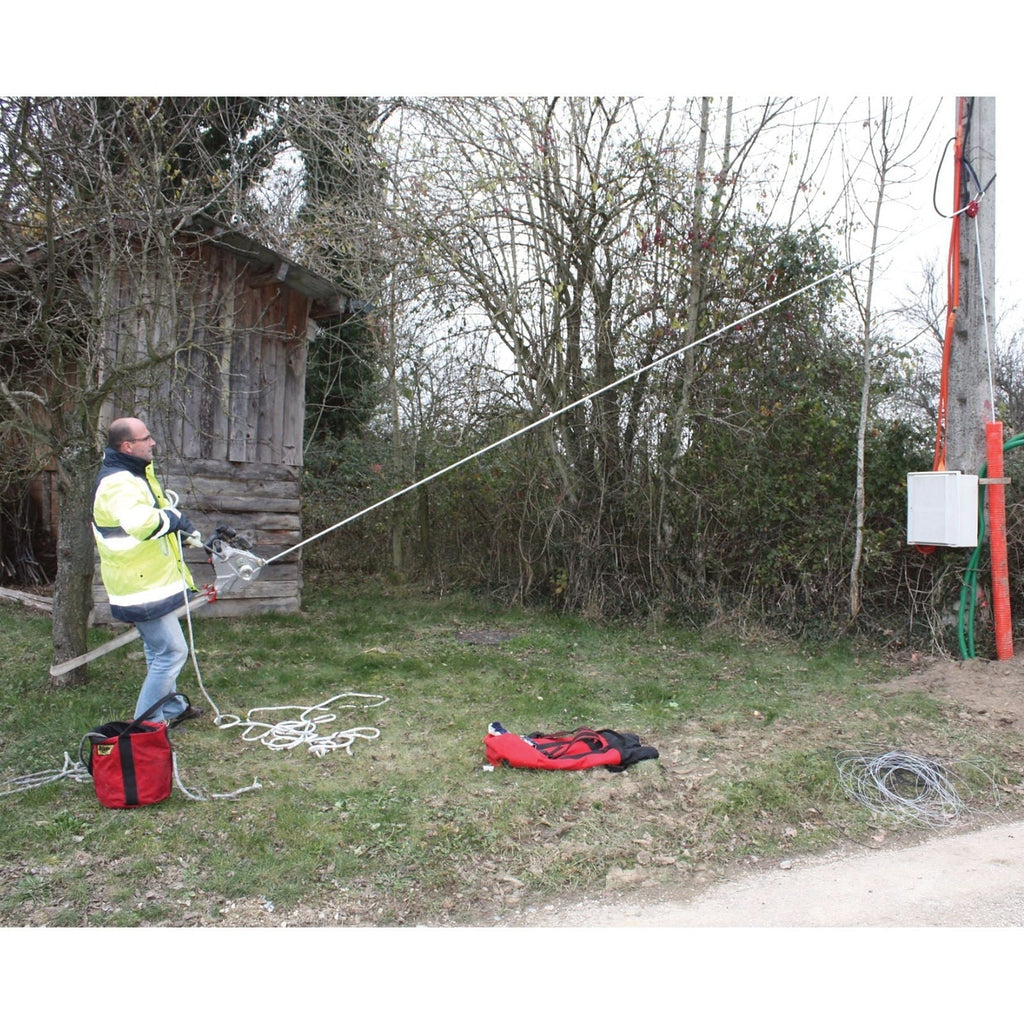

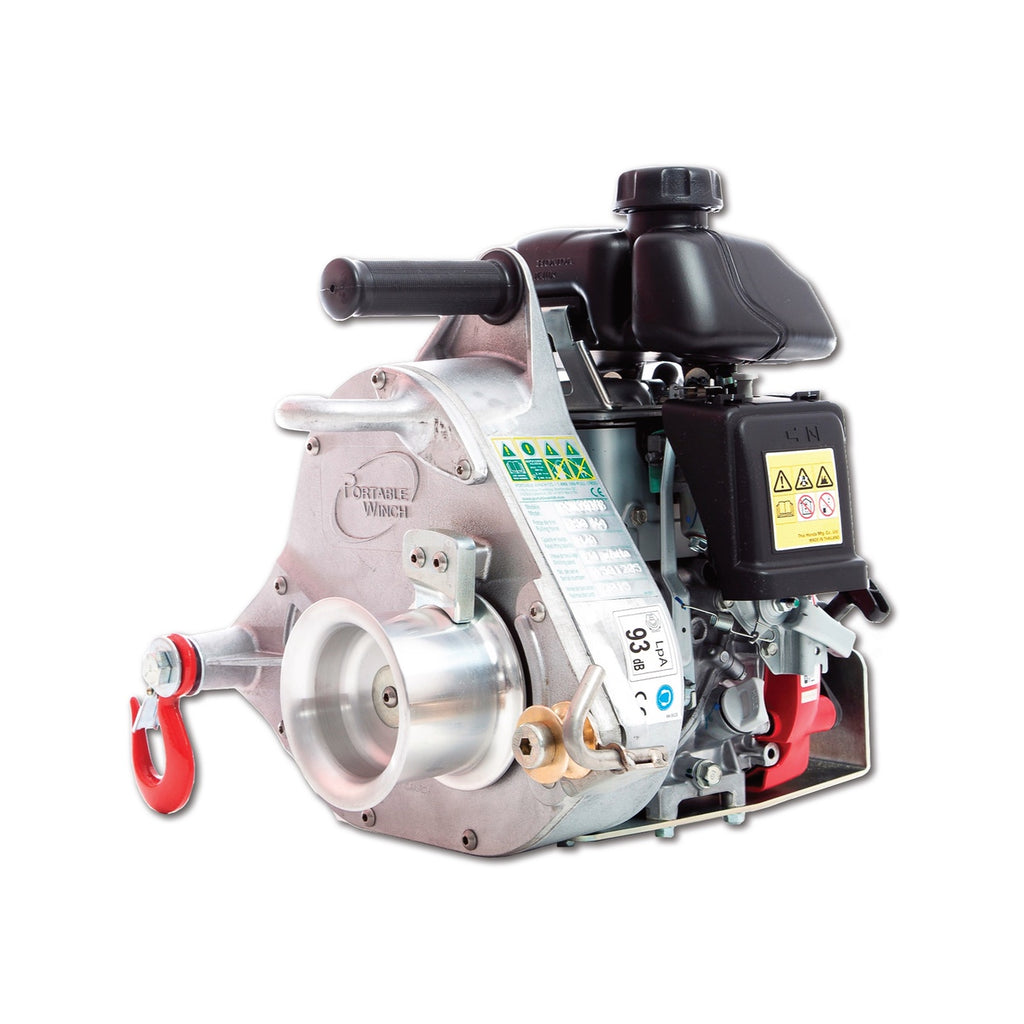

The PCW5000-HS is the fastest Portable Winch in the line-up. It is therefore ideal for jobs requiring more speed than power, such as pulling cable or installing fiber optics.

Using the same successful design as the PCW5000, the PCW5000-HS is built with a gearbox optimized for speed and comes with 3-3/8'' capstan drum as standard. So, at 118 feet per minute, it pulls a load three times faster than its predecessor, making it perfectly suited to pulling smaller loads over a long distance. In addition, the winch's capstan drum concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective and safe way.

The PCW5000-HS develops a pulling force of 770 lb, without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could pull up to 3,850 lb!


  • Series: Industrial
  • Designed in 2011
  • Motor/Engine: Honda GXH50 4-stroke
    1.6 kW - 2.1 HP @ 7,000 tr/min
  • Powered by unleaded gasoline, 86 octane or higher
  • Drive/Clutch: Direct drive (no clutch)
  • Rope Retention System: None
  • Drum turns when motor/engine is idling
  • Pulling Capacity for standard drum (single line / double line): Ø 3-3/8'' (85 mm): 770 lb / 1,540 lb
  • Pulling Capacity for optional drum (single line / double line): Ø 2-1/4'' (57 mm): 1,100 lb / 2,200 lb
  • Lifting Capacity for standard drum (single line / double line): Not designed for lifting
  • Speed for standard drum: Ø 3-3/8'' (85 mm): 118'/min
  • Speed for optional drum: Ø 2-1/4'' (57 mm): 79'/min
  • Weight: 35 lb
  • Dimensions (overall): 14-1/4'' x 14-5/8'' x 14-1/4''
  • Gearbox: Aluminium alloy. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
  • Gear ratio: 53:1
  • Brake: Anti-reversing roller clutch bearing
  • Rope (not included): Low stretch double braided polyester
  • Rope length: Unlimited
  • Rope minimum Breaking Strength (MBS): 2,425 lb
  • Rope minimum diameter: Ø 3/8'' (10 mm)
  • Rope maximum diameter: Ø 1/2'' (13 mm)
  • Rope recommended diameter: Ø ½” (12 mm)
  • Included: Polyester sling – 2-12” x 6-1/2:”
  • Warranty: Once purchased, register your winch online and get 1 additional year of warranty for FREE!
  • Warranty for private use: 5 years
  • Warranty for commercial use: 1 year
  • Motor / Engine Warranty: Honda International Warranty
  • Certifications: CE
