Description

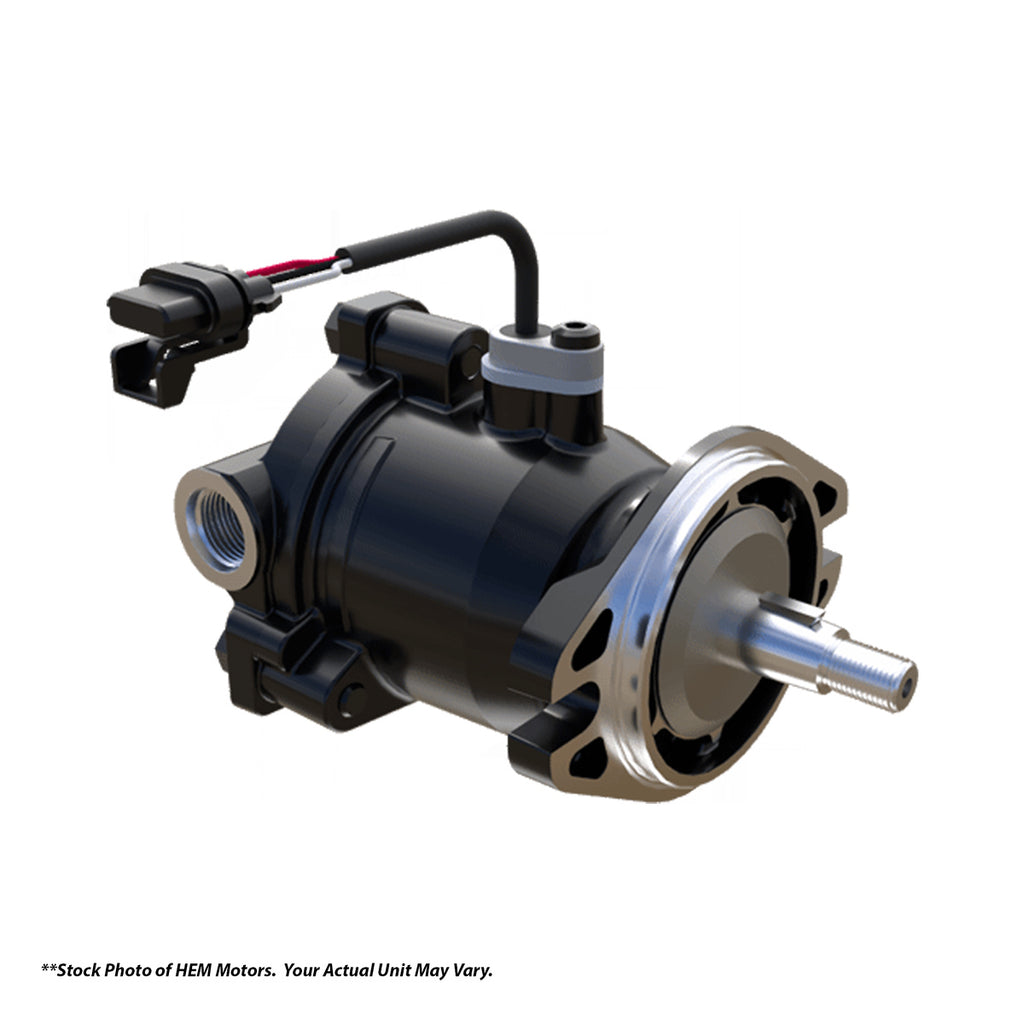

HEM™ MOTOR
THE PERFECT CHOICE FOR ANY MEDIUM-DUTY APPLICATION.
The Hydro-Gear HEM™ High-Efficiency Motor – High-efficiency is its middle name. It was the industry’s first bi-directional, fixed-displacement piston motor featuring a speed sensor option for more precise control. It also offers a durable design for years of high-performance operation and improved noise quality to increase operator comfort. With all these advantages, you can see why we just streamlined the name to “high-efficiency.”
- Improved noise quality that provides increased operator comfort
- Longer durability for years of efficient, high-performing use
- Optional speed sensor for precise control
- The perfect choice for any medium-duty application
APPLICATIONS
- AUGERS
- AUTOMATIC CLAMPING EQUIPMENT
- BELT DRIVES
- CONVEYORS
- FAN DRIVES
- PROCESS MACHINERY
- ROLLER DRIVES
- SWING DRIVES
- VIBRATORY DRIVES
- WHEEL DRIVES
- WINCH DRIVES
SPECIFICATIONS
MOTOR DISPLACEMENT
- 62 in3/rev [10.2 cm3/rev]
- 73 in3/rev [12 cm3/rev]
SAE MOUNTING
- "A" 2 bolt
SHAFT STYLE
- Keyed
- Spline
- Taper
PORT SIZE AND LOCATION
- #10 O-ring boss work ports
- #6 O-ring boss case drain
OUTPUT SPEED RANGE
- 50-4200 rpm
SYSTEM PRESSURE*
- 2500 psi [172 bar] Continuous
- 3500 psi [241 bar] Intermittent
- 4500 psi [310 bar] Peak
WEIGHT
- 5 lbs [2.9 kg]
* BASED ON DESIGNED HOURS OF LIFE.
APPLICATION REVIEW RECOMMENDED FOR HEAVY-DUTY CYCLES.
