Description
SPECIFICATIONS
Harvester Guide Bars |
|
Product Family |
Harvester Bar JF |
Guide Bar Code |
HSF |
Bar Length |
76.2 cm |
Pitch |
.404" |
Gauge |
.080" |
Drive Links |
93.0 |
Tail Mount |
L205 |
PRODUCT FEATURES

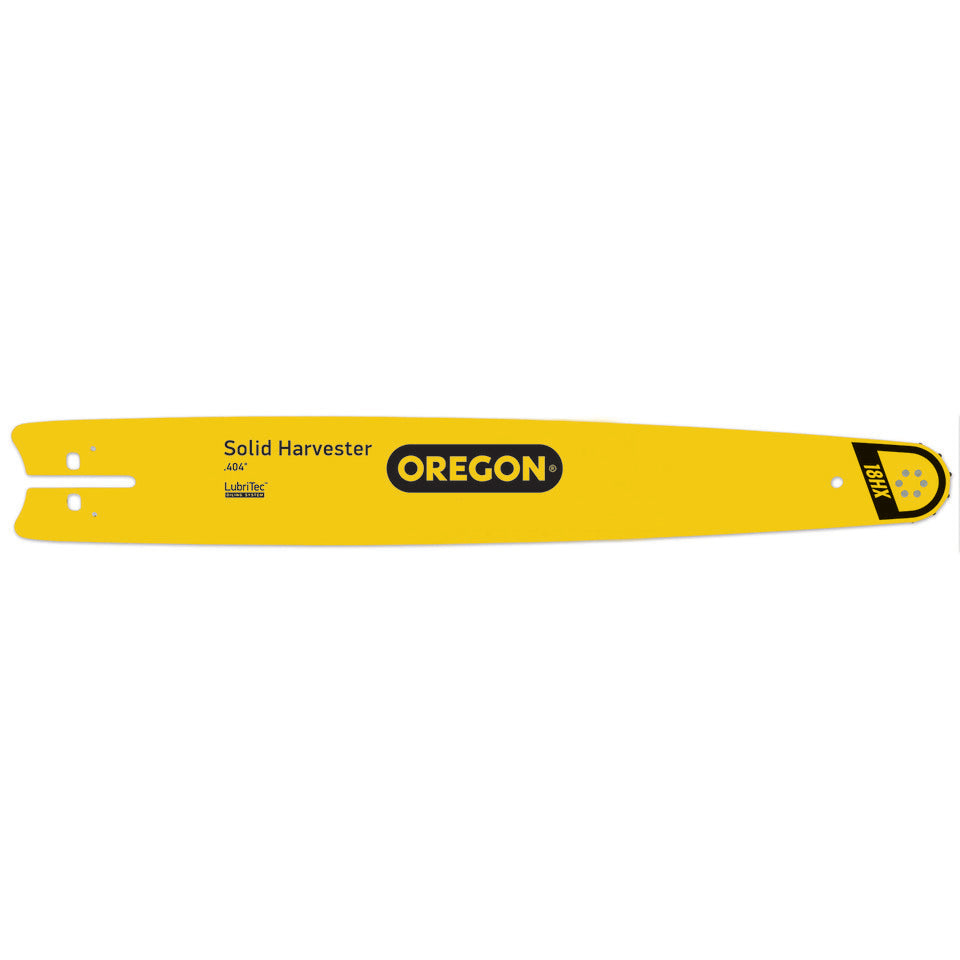

Faster. Stronger. Longer Lasting. Oregon solid harvester (Sprocket nose) guid bar delivers superior performance in demanding, high-speed conditions. This bar resists chipping and features outstanding springback. High-grade alloy-steel material and induction-hardened bar rails make it tough and durable. The patented Jet-Fit bar-mount system maximizes productivity. The slotted motor-mount design fits harvester equipment outfitted with automatic chain tensioners and easily slides in and out of the bar clamp. The Jet-Fit is available in .080" gauge.
PRODUCT DETAILS
- The Solid Nose bars feature a motor-mount configuration designed for efficiency leading to more cutting time
- .404" guide bars are equipped with unique features that facilitate superior performance in demanding, high-speed conditions
- The induction hardening process increases the longevity of your guide bar with precision heat-treated rails and added resistance to wear and chipping
- LubriTec increases the life of your guide bar and saw chain with advanced precision to allow the chain drive links and oil to have closer contact, significantly reducing oil waste
- Our straight and square-milled grooves are designed for consistency, stability, and decreased wear
- Image shown may not reflect actual bar tail motor mount, check Oregon Harvester Catalog for actual tail mount configurations
FITS THE FOLLOWING MODELS
BELL
SUPER T, SUPER ÓTÓ, T, ULTRA C
REPLACES THE FOLLOWING
CARLTON
75H13P5PRS
GB
VB 25 80SM, VB25-80SM
GB XV
VB 25 80XV
GEM
GEM 404 75 6
IGGESUND
2703-75
QIRUI
MV25-80TS
WINDSOR
9216-75-404
